DESCRIPTION:

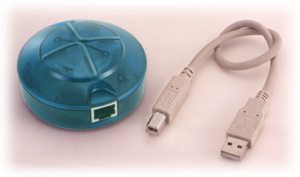

The UB-110T USB to Ethernet Full-Duplex Adapter provides an external Plug & Play LAN connection for PCs, Notebooks, Laptops, and handheld computing devices that feature a USB connection. The adapter contains an RJ-45 receptacle for a 10Base-T or 100Base-TX Ethernet LAN cable. The unit has a detachable USB cable, with Type A plug for connection to a USB port or hub. It is powered from the USB connection.

TYPICAL APPLICATIONS:
The UB-110T can be used in either 100Base-TX or 10Base-T networks, or networks with a mix of both. The unit automatically adjusts to the network conditions. The converter can be used on any computer using the Windows® 98, ME or 2000 Operating Systems. A floppy disk, containing drivers, is furnished. The UB-110T is the equivalent of a LAN Network Interface Card, and contains two (red and green) status LEDs.

SPECIFICATIONS:

Operating Voltage:      5VDC derived from the USB Connector
Operating Temperature:  0°C to 40°C
Storage Temperature:   -20°C to 70°C
Dimensions:             3" dia. X 1.4" high
                        75mm dia. X 35mm high
Cable Length:           1ft. (30cm.)
Compliance:             FCC Class B, CE

PART NUMBERS:

Part Number	Description	Price
UC-110T	USB to Ethernet Converter	$48.00
